8 BNC Ports 500M Analog Video Multiplexer with RS485 PTZ Data
Technical parameter
| Transmitter |
| Video Input Impedance | 75 (Unbalanced) |
| Video Input Amplitude | 0.8-1.5VPP |
| Video Compatible Format | PAL, NTSC |
| Video Interface | BNC |
| Signal Bandwidth | 8MHZ |
| Power Supply | DC12V/1A |
| Receiver |
| Signal Output Amplitude | 0.9-1.1VPP |
| Output Polarity | Positive |
| Output Impedance | 75(Unbalanced) |
| Video Interface | BNC |
| Power Supply | DC12V/1A |
| RS485 Output Parameter(Switch with VIDEO 1) |
| Quantity of Node Supported | 10 |
| Baud Rate | 300-57600bps |
| Interface | Double terminal block |
Product introduction
8 BNC Ports 500M Analog Video Multiplexer with RS485 PTZ Data is specially designed for the video surveillance system to increase monitoring point, reconstruction projects and easy construction of new projects. The application of frequency reuse and signal superimposed technology, 1 way of 485 control signal (alarm signal, audio signal) or 1-channel video signal to other 1-channel video signal can be superimposed through the same coaxial cable. It is the first choice to use this cost-saving product for the new project to save and reduce the difficulty of construction wire.
Product features
◆ 8 Channel video signal for camera over 1 coaxial cable
◆ Designed according to projects with minimum installation volume requirement
◆ Long distance transmission up to 500m
◆ Frequency Division Multiplexing, with all video and data transmission real-time and all images high-definition and non-delay.
◆ Non-debug, adaptive: as long as the transmission distance range, the device will automatically adjust their targets,
◆ One coaxial cable, no extra cable, which save infrastructure cost,(cost saving 25~30%)
◆ Maintaining high quality video & anti-interference immunity
◆ Easy installation with BNC harness

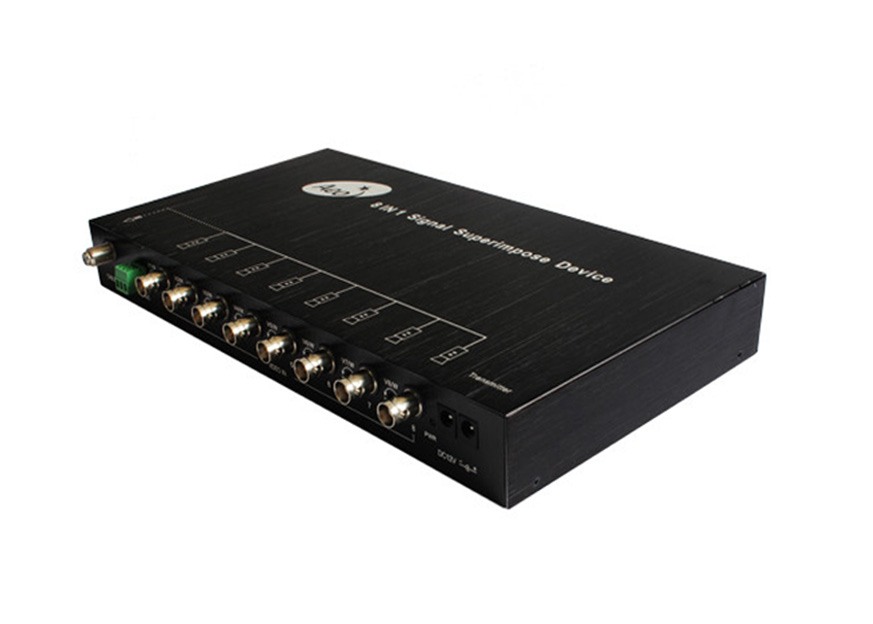

Product Picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
