1080P AHD CVI TVI 1/4/8/16Ch Digital Optical Converter with RS485 Data
Technical Parameters
| Optical | Fiber Type | Multi-mode fiber or Single mode fiber |
| | Fiber Connector | FC/ST/SC |
| | Distance | 0~80km (Optional) |
| | Wavelength | Transmitter Tx1310nm, Rx1550nm. Receiver Tx1550nm,Rx1310nm. |
| Tx | Input level | >500mVp-p |
| | self-adaption cable equilibrium | 1080p:75-5 coaxial cable,300m 720p:75-5 coaxial cable,500m |
| | Input/Output Impedance | 75Ω |
| | Physical Interface | 1/2/4/8 channel BNC connector |
| Rx | Output level | 1Vp-p |
| | Input/Output Impedance | 75Ω |
| | Physical Interface | 1/2/4/8 channel BNC connector |
| Data | Transmission Media | Coaxial cable |
| | Baud Rate | 1200~9600bit/s |
| | Bit Error Rate | <=10 |
| | Operation Mode | Half-Duplex |
| | Indicators | LOS,PWR,DATA,VIDEO |
| | Mean time between failures (MTBF) | >100 000 hours |
| General | EPS | DC5V |
| | Power Consumption | <=5W |
| | Operation Temperature | -40℃~75℃ |
| | Operation Humidity | 10%~90% |
| | Atmospheric Pressure | 86kpa~106kpa |
| | Mounting Method | Wall-mounted |
Overview
The converter can simultaneously transmit 1-16 channels HD-CVI/TVI/AHD over one multitude or single-mode optical fiber. LED indicates instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment.Compatible with AHD-H, AHD-M, AHD-L. It is without loss and non-compression real time transmission.
Product Features
1. Non-compression coding technology.
2. Automatically identify formats of input videos.
3. Support 1~16ch AHD signal and controlling data simultaneously through coaxial cable.
4.DC 5V power supply.
5. Support 720p/25,720p/30,720p/50,720p/60,1080p/25,1080p/30 video etc.
6.Through LED indicators to inform its functional mode.
7.Industrial wide range of operational temperature.
8. Plug and play, simple installation.

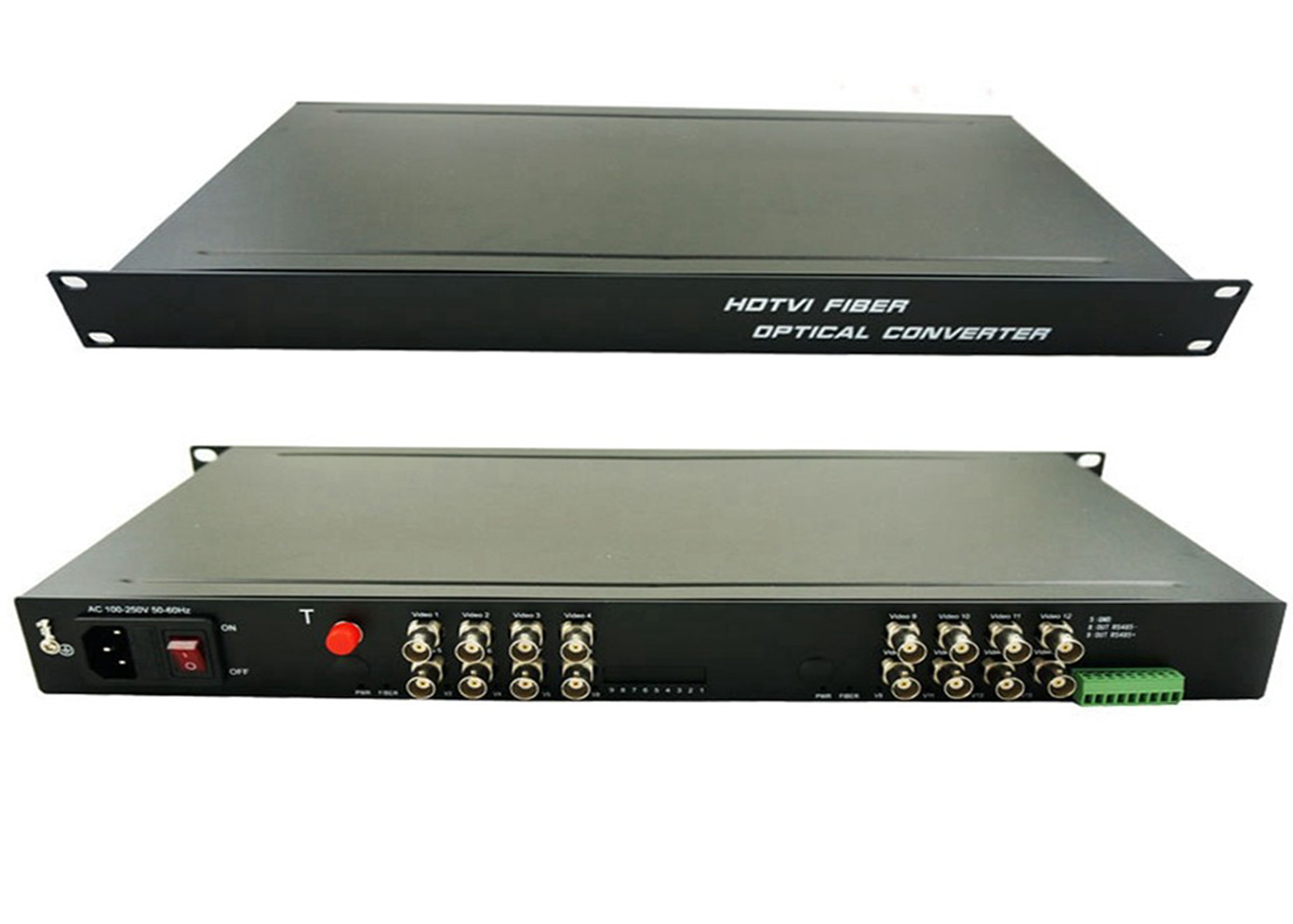

Product Picture
