UTP To 10/100/1000M SFP Media Converter DC5V 1A

Brand Name : AEO

Certification : CE, FCC

Place of Origin : China

MOQ : 1 pair

Price : negotiation

Payment Terms : T/T

Supply Ability : 10000 pairs/month

Delivery Time : 2-3 working days

Packaging Details : package and carton

Optical wavelength : 1310/1550nm

input voltage : DC5V1A

Operating temperature : 0~50℃

Operating humidity : 5% ~ 95%

Transmission power : -8~-2 dBm

Received sensitivity : ≤-35 dBm

MTBF : 100000 hours

Working Temp : -20℃~ 70℃

Contact Now

Gigabit SFP Media Converter 10/100/1000M SFP Slot to UTP Converter



Technical Parameters

Network Media 1000Base-TX to 1000Base-FX
Forwarding Mode Store-And-Forward Architecture
Ethernet Rate 10/100/1000M
Network Protocol IEEE 802.3,IEEE 802.3u,IEEE 802.3x
Optical Fiber Dual fiber or Single fiber
Optical Distance 0~120km
Power Supply DC5V1A
Power Consumption 3.5 w (Input:DC5V 1000mA)
Lightning Protection Multi-level protection (3000V)
Working Environment -20℃~ 70℃
Certification CE,FCC, ISO9001



Product Overview

This 10/100/1000M Gigabit Ethernet converter is used in backbone network transmission and is primarily used for Gigabit Ethernet devices links. It converts Optical-Electric Ethernet signals between 10/100/1000M UTP interface (TX) and 1000M SFP socket (FX). According to customers’requirements, this media converter supports single-mode and multi-mode fibers with a transmission distance of up to 120 km for single-mode fiber and 550 m for multi-mode fiber. It extends the transmission distance through its photoelectric conversion network. The media converter takes advantage of intelligent connection technology to provide auto-negotiation thereby eliminating the need to manually configure or monitor settings.



Product features

Modular design, plug and play

Complies with IEEE 10/100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standards

Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex

Available in single fiber WDM versions - 1310/1550 nm wavelengths used

Supports automatic cross of twisted pair ports

Alarm LED illuminates to indicate link failure, status LEDs for easy monitoring of device's status

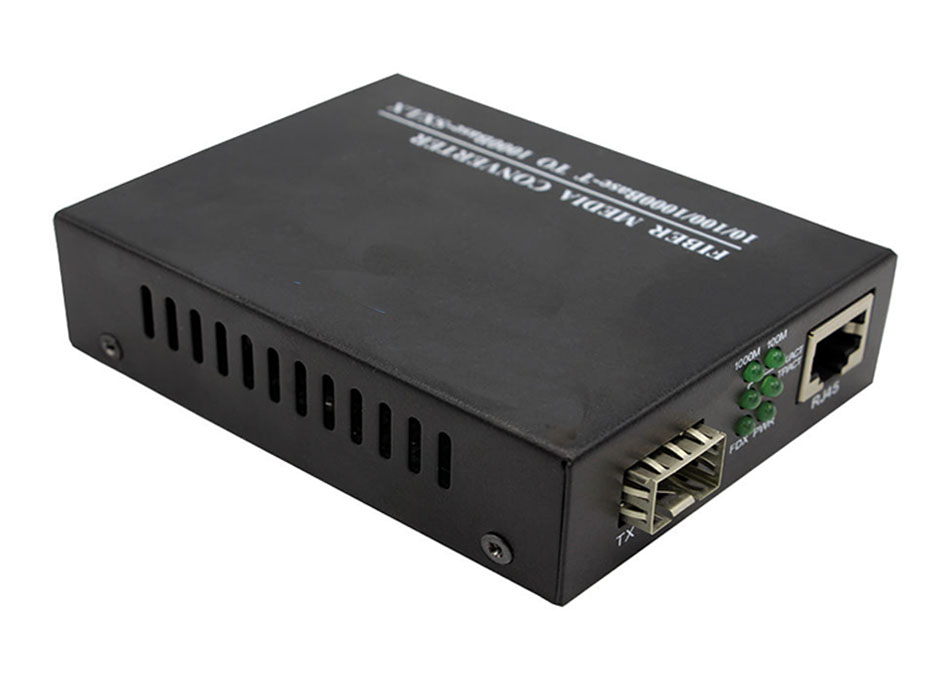

Product Picture

UTP To 10/100/1000M SFP Media Converter DC5V 1A

Packaging & Shipping



● All of our package are international standard package

● We will deliver our products as soon as the order confirmed



UTP To 10/100/1000M SFP Media Converter DC5V 1A
