9 Port Industrial POE Switch Gigabit Optical Din Rail Fiber Converter

Product Categories
Shenzhen Qiutian Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

9 Port Industrial POE Switch Gigabit Optical Din Rail Fiber Converter

Brand Name : AEO

Certification : CE, FCC

Place of Origin : China

MOQ : 1 piece

Price : negotiation

Payment Terms : T/T, L/C

Supply Ability : 10000 pcs/month

Delivery Time : 3-4 working days

Packaging Details : package and carton

SFP port : 10/100/1000Mbps

Ethernet port : 8 10/100/1000mbps UTP

Bandwidth : 40G

Chipset : DC48V

Storage temperature : -40°～ 85°C

Working temperature : -40°～ 85°C

Contact Now

9 Port Industrial POE Switch Gigabit Optical Din Rail Fiber Converter

Technical Parameter

Port

1 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km

1490nm/1550nm,40~120Km

MM:1310nm,2Km

8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features

Transmission mode:storage and forward

System bandwidth:40Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber
Power supply

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W (port 1~4)

(802.3at standards required special instructions)
Environment

Working temperature:-40°～ 85°C

Storage temperature:-40°～ 85°C

Working humidity:10%～90%,non-condensing

Storage humidity:10%～95%,non-condensing
Safety

CE Mark ,commercial

CE/LVD EN60950
Warranty Replacement within 1 year; 5 years repairing



Product Overview

10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards.



Product Feature

IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports

  1. 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
  2. 1 x 1000Mbps SFP fiber ports
  3. 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
  4. Support Auto MDI/MDIX
  5. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  6. IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
  7. Max power to15.4W under af standard, 30W under at standard to each PoE port
  8. Detect the PoE models of electrical equipments.
  9. store-and-forward switching mechanism
  10. Operating environment temperature:-40 ° ~85 ° c

Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable

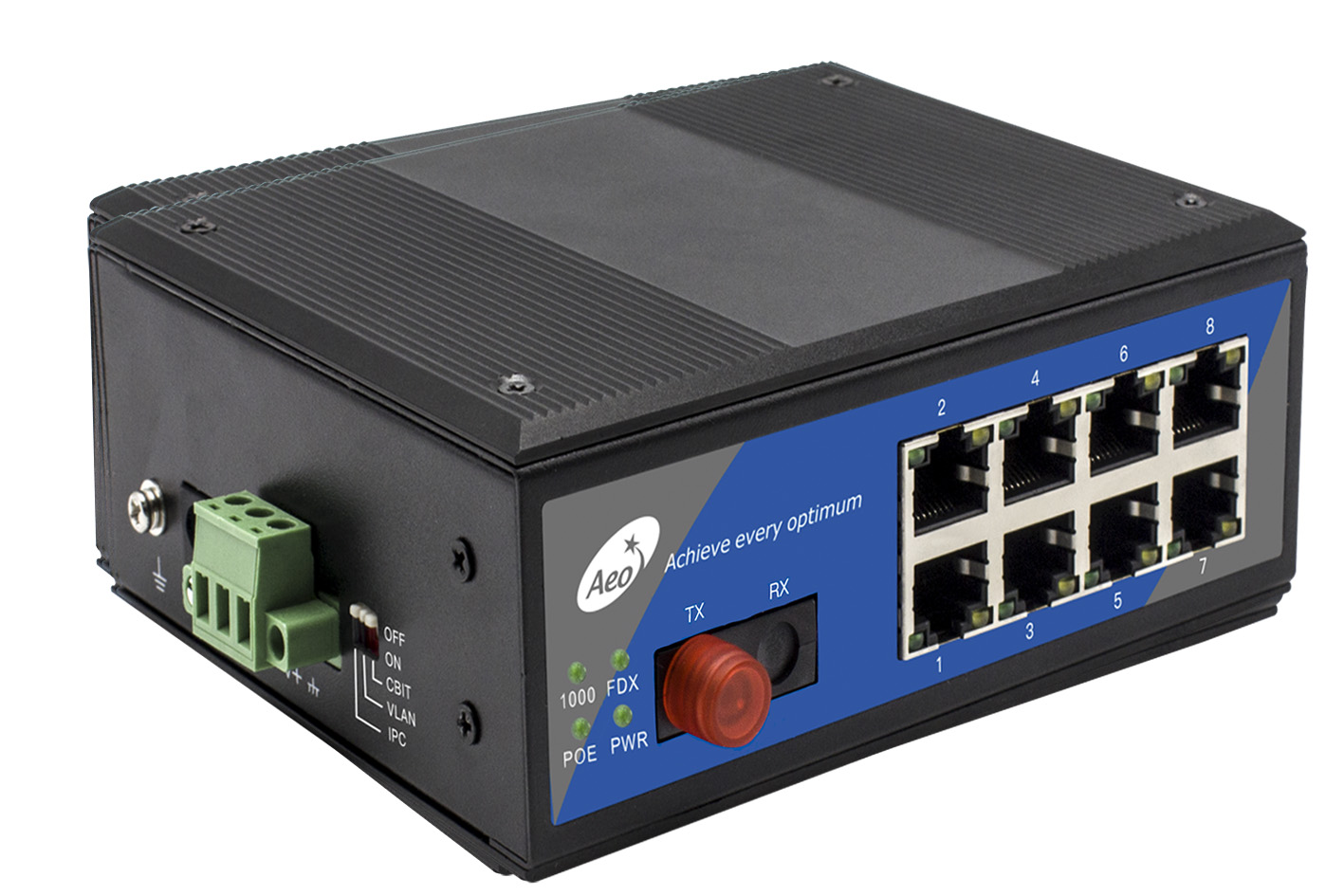

Product picture

9 Port Industrial POE Switch Gigabit Optical Din Rail Fiber Converter
Packaging & Shipping



● All of our package are international standard package
● We will deliver our products as soon as the order confirmed

9 Port Industrial POE Switch Gigabit Optical Din Rail Fiber Converter
