HDMI Network Extender over CAT6 Up to 60M Extend HD 1080p/60 Signals
Technical Parameters
| Video | Standards | HDMI 1.3; HDCP 1.2 |
| | Maximum pixel clock | 165MHz |
| | Maximum data rate | 6.75Gbps |
| | Resolution | 1920X1080P@60Hz |
| | Connector | HDMI-A |
| | Impedance | 100Ω |
| IR | Interface | 3.5mm seat |
| | Signal direction | Unidirectional |
| | | |
| | Signal type | Digital |
| | IR frequency | 38kHz |
| UTP | Interface | RJ45 |
| | Transmission distance | CAT5e/6 |
| Other | Power supply | The power adapter: DC 5V/1A |
| | Power dissipation | MAX 3W |
| | Operating Temperature | -20℃ ~ +70℃ |
| | Operating Humidity | 5% ~ 90% |
Overview
The HDMI Network Extender is a compact HDMI Extender with local HDMI output designed to carry DVI/ HDMI signals over distances beyond the capability of standard HDMI/ DVI cable. It extends video and audio over a single CAT6 cable up to 196ft. (60m) and is compliant with HDCP and EDID to enhance Deep Color and optimal resolutions up to HD 1080p/60. In addition, the extender provides auto-adjustment, buffering and signal equalization to maintain pixel-perfect resolution up to HD 1080p/60 on a single CAT6 cable.
Features
◆ Locking power supply connector providesadded security
◆ Full digital, Uncompressed HD optical fiber transmission
◆ Exact match HDMI1.3b standard,HDCP1.1 protocal,support CEC With Independent analog audio
◆ Automatic identification and configure display mode
◆ Support resolution up to 1080P60 and below
◆ Single mode,multi mode optical transmission
◆ ESD protection circuit inside, to ensure the ESD damage.
◆ Easily to installation, plug and play, no need to set up
◆ Supports multi-mode and single-mode fiber optic cables using LC optical connectors
◆ Very long usable range up to 20km
◆ Optical link does not require any copper cable connections
◆ Optical link is immune to environmentalsignal noise
◆ Low RFI / EMI profile for sensitive applications
◆ Supports IR back channel over optical link

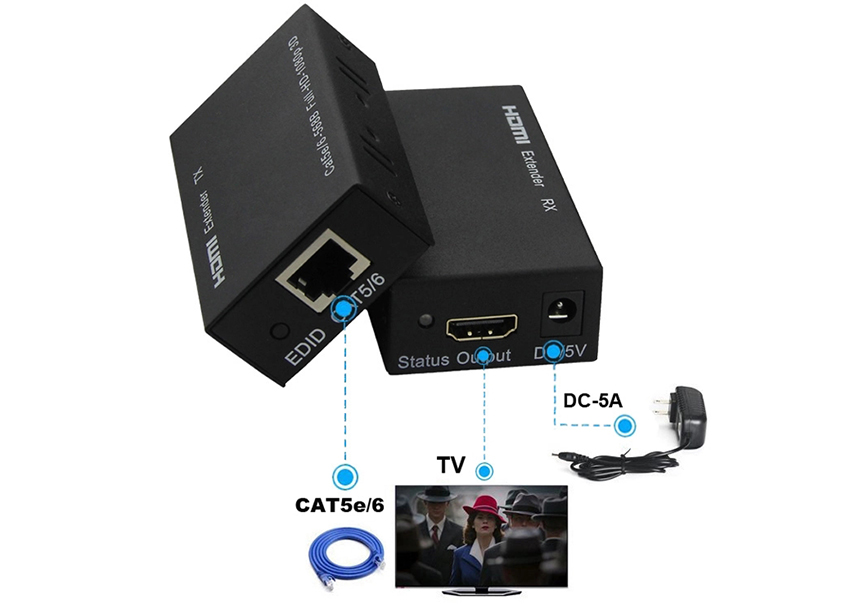

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
