10/100Mbps Ethernet Fiber Switch

Brand Name : AEO

Certification : CE, FCC, ROHS

Place of Origin : China

MOQ : 1 piece

Price : negotiation

Payment Terms : T/T

Supply Ability : 10000 pcs/month

Delivery Time : 5-8 working days

Packaging Details : package and carton

10/100M POE Ports : 4

10/100M Optical Ports : 2

Backplane Bandwidth : 1.6G

Cache : 1M

MAC address table : 2K

MAX Frame Length : 1536bytes

Fiber Ports Propertie : 1310/1550nm

Transmission Distance : 20-100KM

Input voltage : +44~+57VDC

Operating Temperature : -40 ~ 85℃

Transmission power : -8~-2 dBm

Received sensitivity : ≤-35 dBm

Network Ports Properties : IEEE802.3、IEEE802.3U、IEEE802.3X protocol

Network Port Delay : ﹤9.6μS

Network Port Bit Error Rate : ﹤1/1000000000

Power consumption : ≤5W

IPC : 250M

VLAN : support

CBIT : support

Contact Now

Industrial Fiber Switch 10/100Mbps 4 POE Ethernet and 2 Optical Ports

Technical Parameters

CONNECTORS	Fiber: 2 x Optic Ports Ethernet: 4 x RJ-45 POE Power & Relay: 6-pin removable screw terminal block
ENCLOSURE	IP30, Metal Shell with Solid Mounting Kits
FAULT OUTPUT	1 Relay Output
INDICATORS LED	System: P1, P2, P-Fail Gigabit Copper: Link/Activity, Spped (1000 Mbps) Gigabit SFP: Link/Activity
INTERFACES	LAN: 100 Base-TX, 10/1000 Base-T, Optional 100 Base-FX
MOUNTING	DIN Rail, Wall
MPN	EKI-7629C-AE
MTBF	100,000 hrs
POWER CONSUMPTION	Max. 5 W
SECURITYPROTECTION	Overload: 1.6A @ 12 VDC (Resetable Fuse) Reverse Polarity: Present
STANDARDS	IEEE 802.3, 802.3x, 802.3u, 802.3ab, 802.3z
STORAGE SPECIFICATIONS	Temperature: -40°C to +85°C Humidity: 0% to 95% (non-condensing)
TEMPERATURE RANGE	Operating: -40°C to +85°C Humidity: 5% to 95% (non-condensing)
TRANSMISSION DISTANCE	Ethernet: Up to 250 m (4-wire CAT5e, CAT6 Cable) Gigabit Fiber: Up to 100 km (Depending on optical)
TRANSMISSION SPEED	Ethernet: Up to 10/100 Mbps Auto-Negotiation optic: Up to 100 Mbps

System Overview

The Unmanaged Industrial Switch supports supports 4 10/100 Fast POE Ethernet Ports with 2 10/100M Fiber Optic Ports. It comes in an compact metal housing which rates IP30 helping to protect the switch from dusty industrial environments. The standard Ethernet ports can be used for up-linking wide-band paths in distances 250M. Additionally replaceable optic modules can be used for the application of wide band uploading and long distance transmissions.

Product Features

Supporting all the network HD cameras and other network signals;
Being compatible for IEE802.3,IEEE802.3U,IEEE802.3X and other internet protocol;
Supporting the transmission pattern of full-duplex and half-duplex, with the ability of automated negotiation;
Having the function of setting ring net in all the devices, and change transmission while the disconnection of the intermediate node;
Supporting POE on the network port;
Providing the transmission of ultra low delayed data;
Protecting from network broadcast radiation;
Providing 4 set adaptive Ethernet ports, which can link with internet camera, the switch and so on;
Adapting parallel or cross-wire connection;
Having APC circuit, with constant optical power output and wide dynamic range;
10/100Mbps optical fiber transmission, with large capacity which could be upgraded easily;
Having advanced adaptive technology, no field of the use of optical or electrical adjustment
Adapting three-level lighting protection technology on the computer ports and network signals.
Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be 250M
Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.
Auto Negotiation and Auto MDI/MDI-X
DIN-Rail and Wall Mountable
IP30 Rated Compact Metal Housing
Redunant 12 ~ 48VDC Power Input and P-Fail Relay
Support the din rail & desktop installation
Support the CBIT to ensure the HD image.

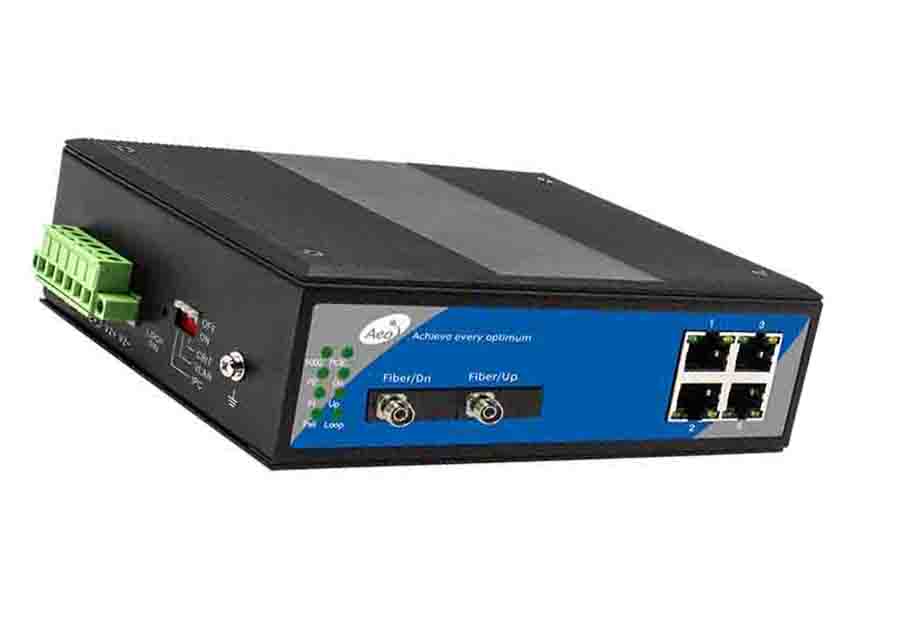

Product picture

Application Diagram

Packaging & Shipping

● All of our package are international standard package

● We will deliver our products as soon as the order confirmed
